Various Instruments

Useful additional instrumentation

The clearly readable dial on the ViewLine quartz clock adds a stylish touch to every pleasure boat and yacht Cockpit.

The ViewLine outside temperature gauge can display both the engine compartment temperature and the current air temperature.

The ViewLine operating hours counter is only activated when the engine is running so only genuine engine operating hours are counted.

The quartz clock and the gauge that indicate outside temperature add a stylish look to every pleasure boat and yacht cockpit.

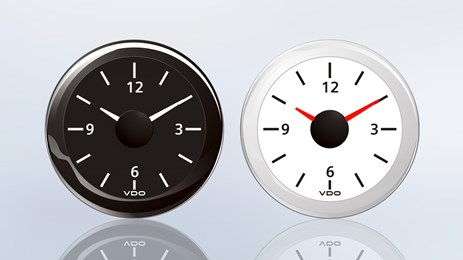

Clock

The clearly readable dial on the ViewLine quartz clock adds a stylish touch to every pleasure boat and yacht cockpit.

8 pole Tyco / Hirschmann MQS plug
Operating voltage 8 – 16 V, 18 – 32 V
Current consumption < 10 mA
Reverse polarity protection
Anti-fog double lens
Front side protection rating IP67
52 mm installation diameter
50 mm installation depth

Voltage	Color	Article number
Ø 52 mm
8 – 16 V	Black White	A2C59513445 A2C59513443
18 – 32 V	Black White	A2C59513446 A2C59513444

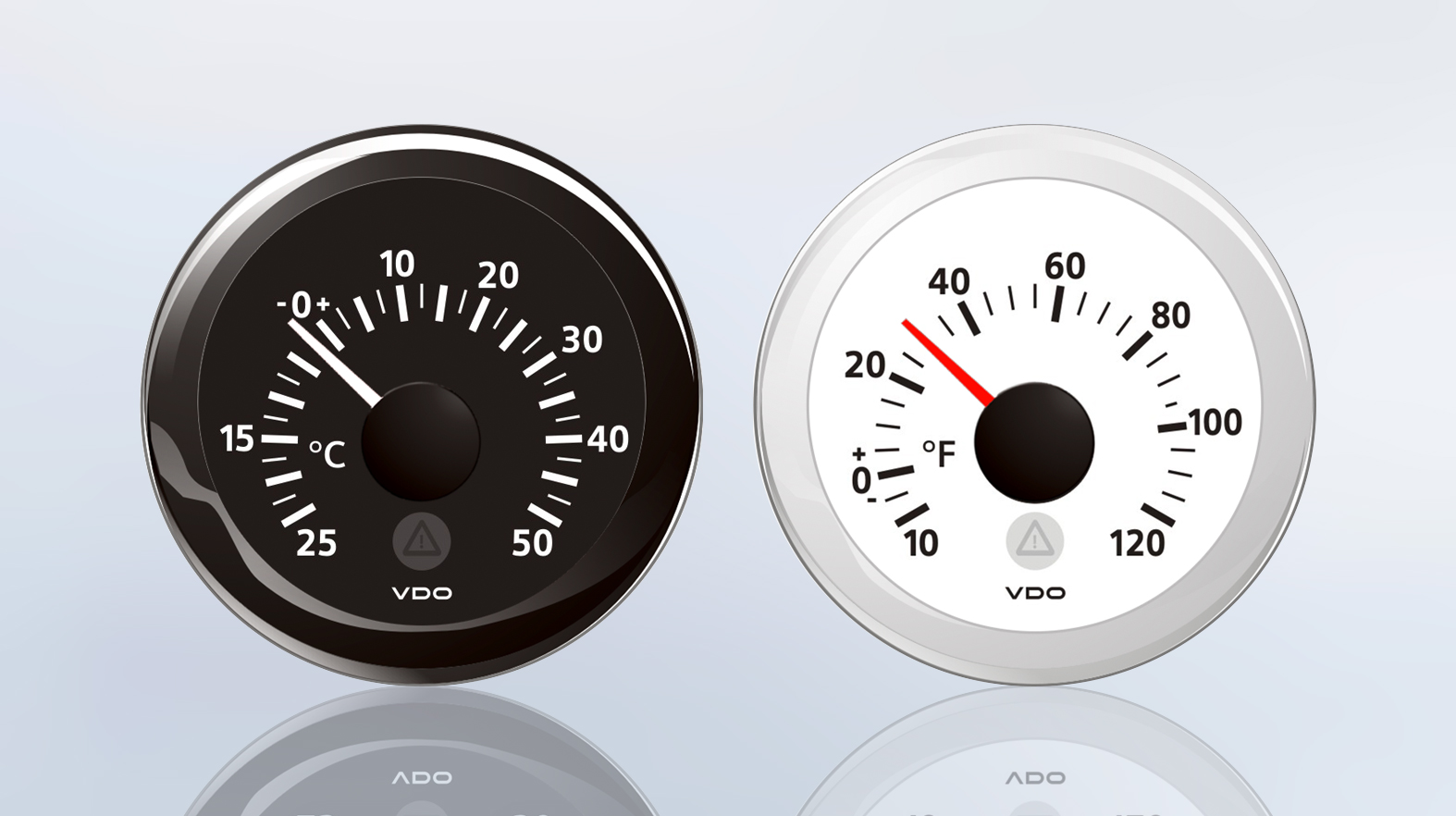

Outside temperature gauge

The ViewLine outside temperature gauge can display both the engine compartment temperature and the current air temperature.

8 pole Tyco / Hirschmann MQS plug
< 2.5 % accuracy over the entire display range
Operating voltage 8 – 32 V
Current consumption < 100 mA, with integrated warning light (LED)
240° display angle
Programmable warning point (via optional PC software)
Reverse polarity protection
Anti-fog double lens
Front side protection rating IP67
52 mm installation diameter
50 mm installation depth

Range temp	Voltage	Color	Input ohm	Article number
Ø 52 mm
- 25° / + 50 °C	8 – 32 V	Black White	2k W	A2C59512336 A2C59512338
- 10° / + 120 °F	8 – 32 V	Black White	2k W	A2C59512337 A2C59512339

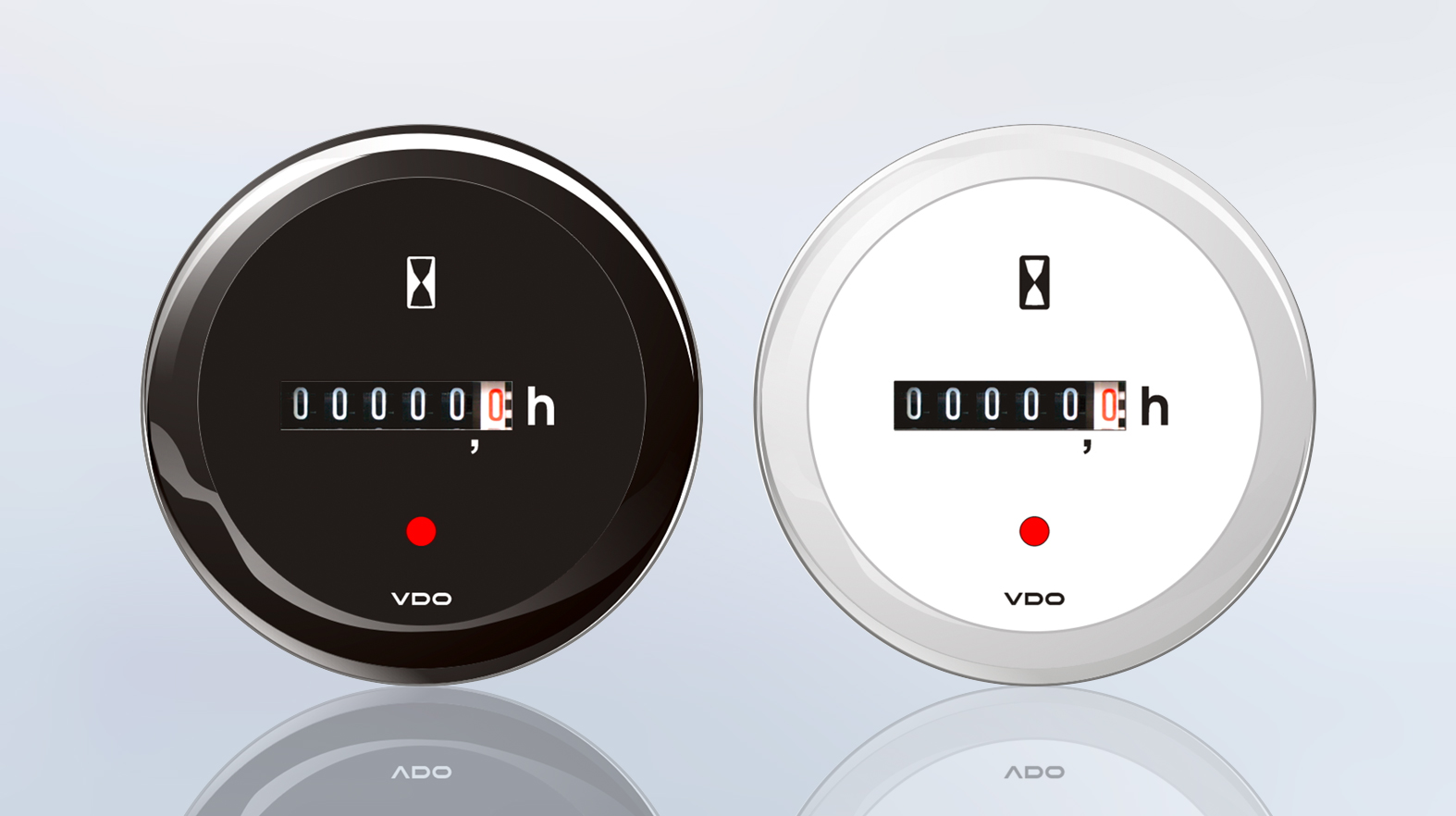

Hour counter

The ViewLine operating hours counter makes it easy to stick to an effective maintenance schedule. It is only activated when the engine is running so only genuine engine operating hours are counted.

8 pole Tyco / Hirschmann MQS plug
Operating voltage 9 – 30 V
Current consumption < 30 mA, with integrated LED function control light (red)
Reverse polarity protection
Anti-fog double lens
Front side protection rating IP67
52 mm installation diameter
50 mm installation depth

Voltage	Color	Article number
Ø 52 mm
9 – 30 V	Black White	A2C59512453 A2C59512454
