Navigation Instruments

Precise instrumentation to safely steer your boat

The multifunctional gauge with segment display indicates the Speed over Ground and includes a programmable speed alarm.

The ViewLine rudder angle gauge for wheel-controlled yachts displays the current rudder position at all times.

The ViewLine trim gauge provides information about the position of the engine in relation to the boat‘s stern.

On boats with twin engine installations, the ViewLine synchronizer helps to ensure correct synchronized running of both Units.

The ViewLine depth indicator measures water depth. The integrated alarm ensures safe passage through shallow waters.

Reliable navigation instruments ensure secure and accident-free maneuvers even in difficult situations such as narrow waterways. The VDO marine navigation instruments show precisely and clearly safety-related data and more.

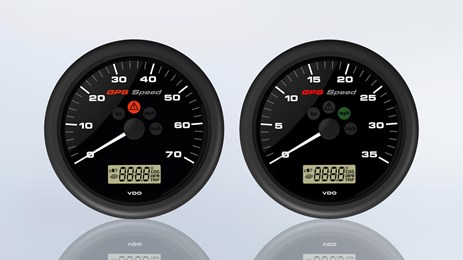

GPS speed gauge

This multifunctional gauge with segment display is intended for use in the marine market in open boats. Based on the ViewLine housing concept, the cluster provides an ideal IP protection class, a modern appearance and high quality standards.

Embedded GPS antenna
Robust and flexible design for versatile applications
CAN capability (NMEA 2000)
Pointer for analog indication of Speed over Ground (SOG)
Programmable speed alarm
Fixed segment LC display
Flush mount possibility
Front side protection rating IP67
Compass for Course over Ground (COG)
Clock
110 mm installation diameter
126 mm outer diameter
50 mm installation depth

Range knots / kmh / mph	Voltage	Operating temperature	Article number
Ø 110 mm
0 – 12 knots / kmh / mph	8.5 – 16 V	- 20° / + 85 °C	A2C59501987
0 – 35 knots / kmh / mph	8.5 – 16 V	- 20° / + 85 °C	A2C59501782
0 – 70 knots / kmh / mph	8.5 – 16 V	- 20° / + 85 °C	A2C59501781

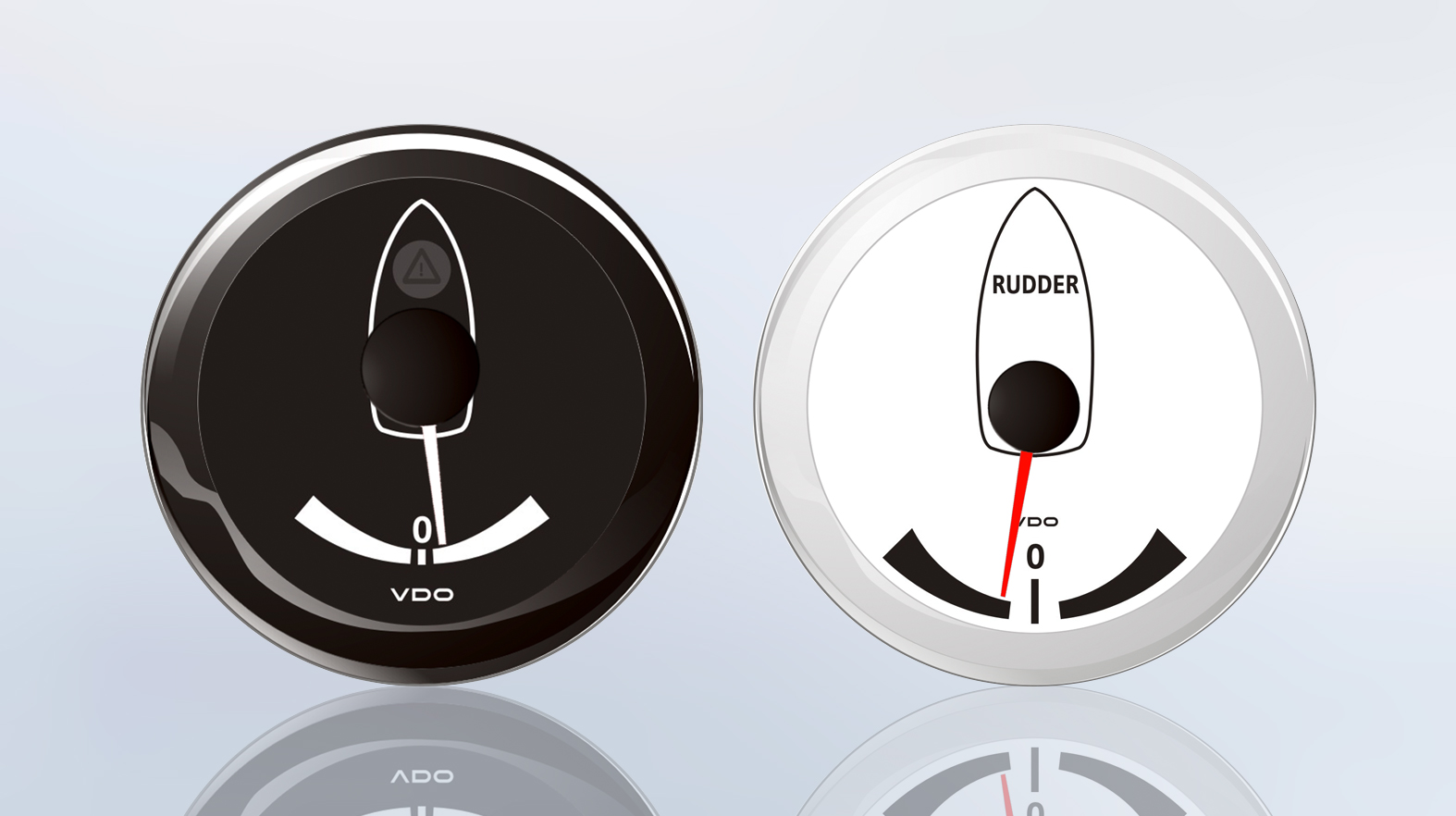

Rudder angle

The ViewLine rudder angle gauge for wheel-controlled yachts displays the current rudder position at all times. It is an important gauge for accident-free maneuvres in narrow waterways.

52 mm range: 40° Port to 40° Starboard
85 mm range: 45° Port to 45° Starboard
8 pole Tyco / Hirschmann bush housing
Operating voltage 8–32 V
Current consumption < 150 mA
Anti-fog double lens
Front side protection rating IP67
52 or 85 mm installation diameter50 mm installation depth

Range angle	Voltage	Color	Input ohm	Article number
Ø 52 mm
- 40° / + 40°	8 – 32 V	Black White	3 – 180 W	A2C59514154 A2C59514230
Ø 85 mm
- 45° / + 45°	8 – 32 V	Black White	3 – 180 W	A2C59512410 A2C59512411

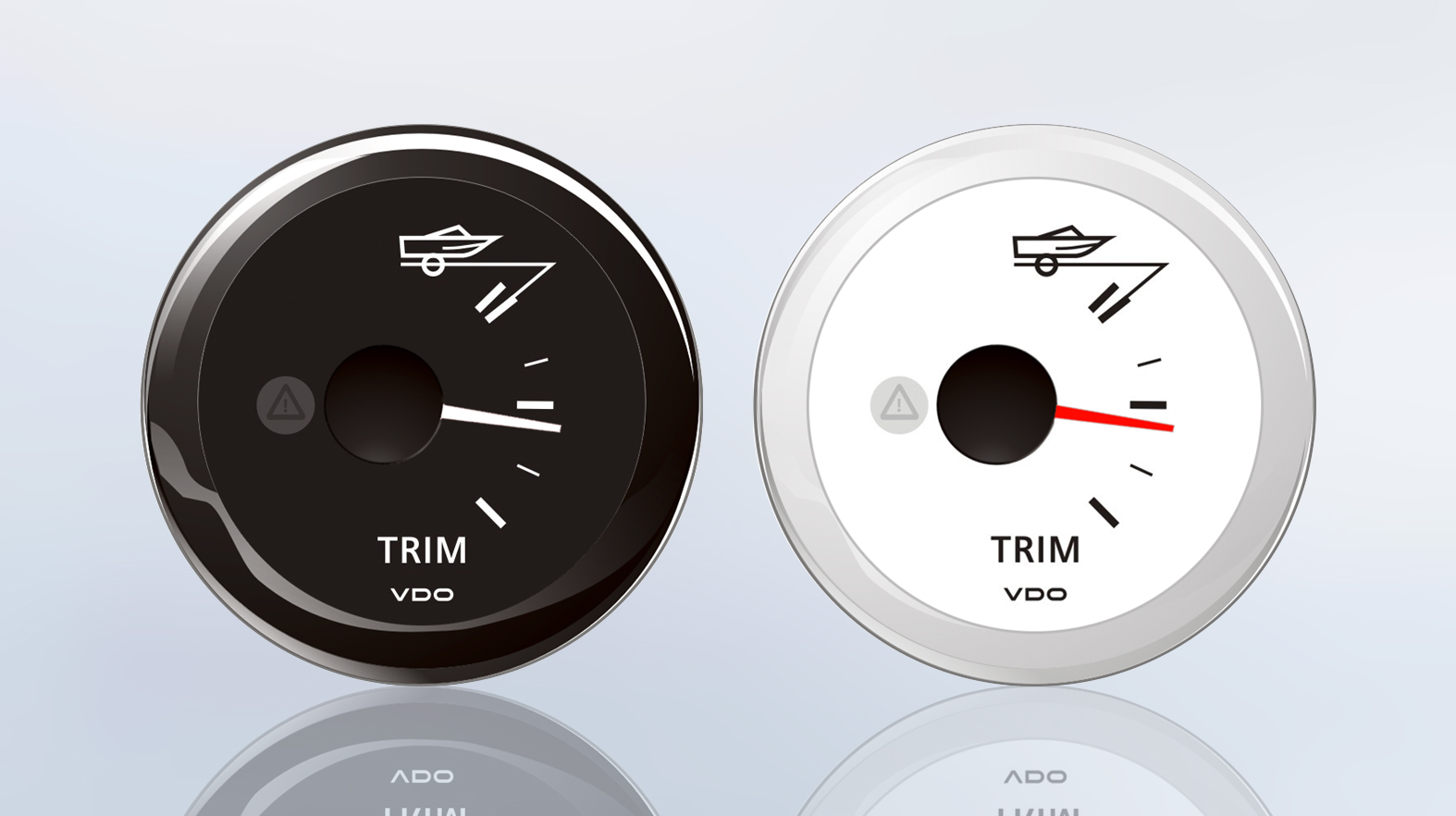

Trim gauge

The ViewLine trim gauge provides information about the position of the engine in relation to the boat‘s stern. In this way the skipper always knows whether the drive is in the raised or lowered position. He can also optimize the boat‘s trim.

8 pole Tyco / Hirschmann MQS plug
+ / – 3.6° angle degree accuracy over the entire display range
Operating voltage 8 – 32 V
Current consumption < 150 mA, with integrated warning light (LED)
Input signal: standard Ω values
90° display angle
Reverse polarity protection
Anti-fog double lens
Front side protection rating IP67
52 mm installation diameter
50 mm installation depth

Range	Voltage	Color	Input ohm	Article number
Ø 52 mm
up / down	8 – 32 V	Black White	167 – 10 W	A2C59514180 A2C59514244

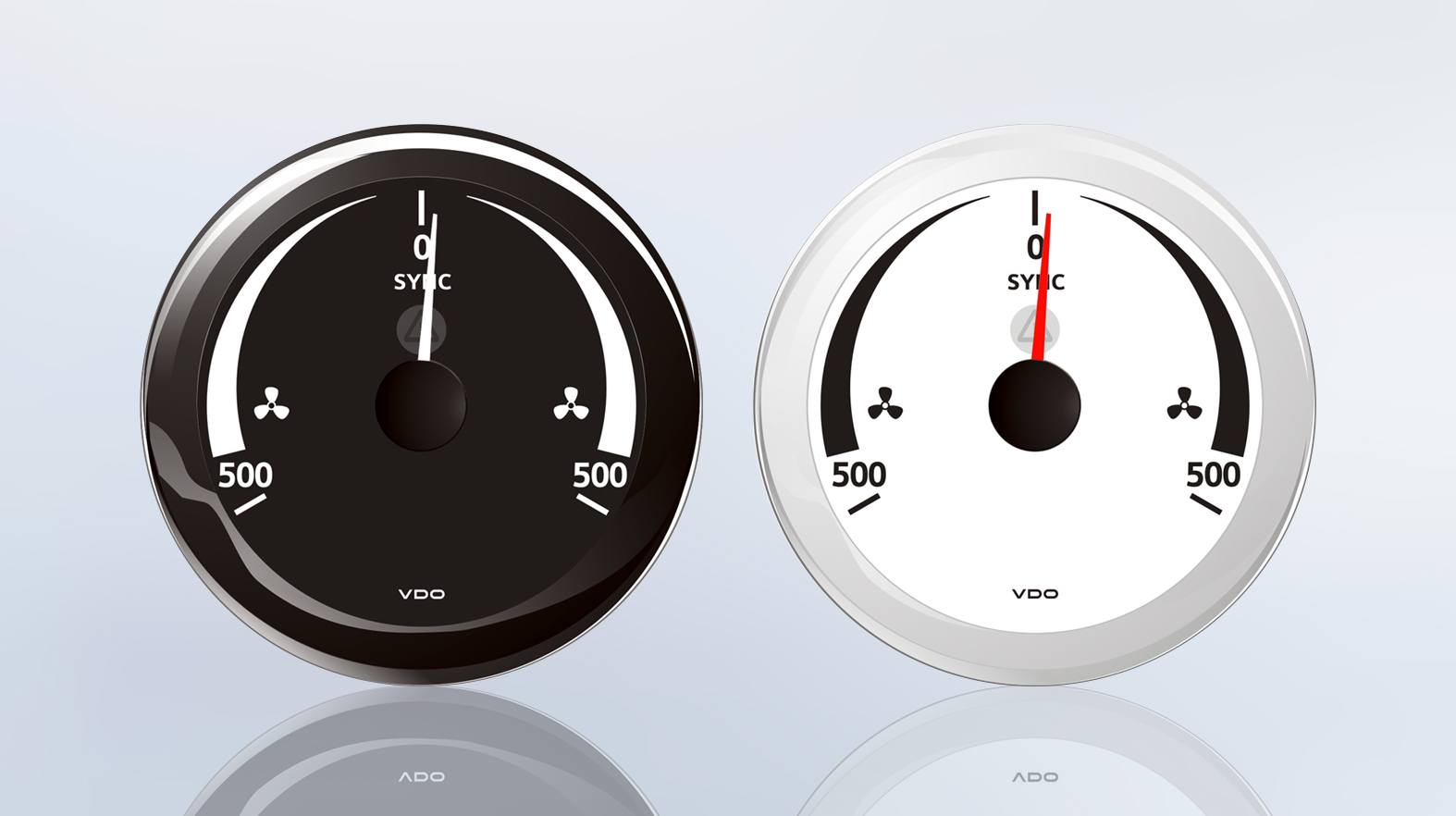

Synchronizer

On pleasure boats with twin engine installations, the ViewLine synchronizer is an indispensable aid to ensuring correct synchronized running of both units.

8 and 14 pole Tyco / Hirschmann bush housing< 150 mA
Operating voltage 8–32 V
Accuracy +/- 2.5 %
Current consumption 150 mA
2nd frequency input
Connection for external alerts (option)
Number of pulses programmable via dip switch or PC software (ViewLine programming tool)
Anti-fog double lens
Front side protection rating IP67
85 mm installation diameter
50 mm installation depth

Range rpm	Voltage	Color	Input	Article number
Ø 85 mm
- 500 / + 500 rpm	8 – 32 V	Black White	W, 1, Ind	A2C59512402 A2C59512403

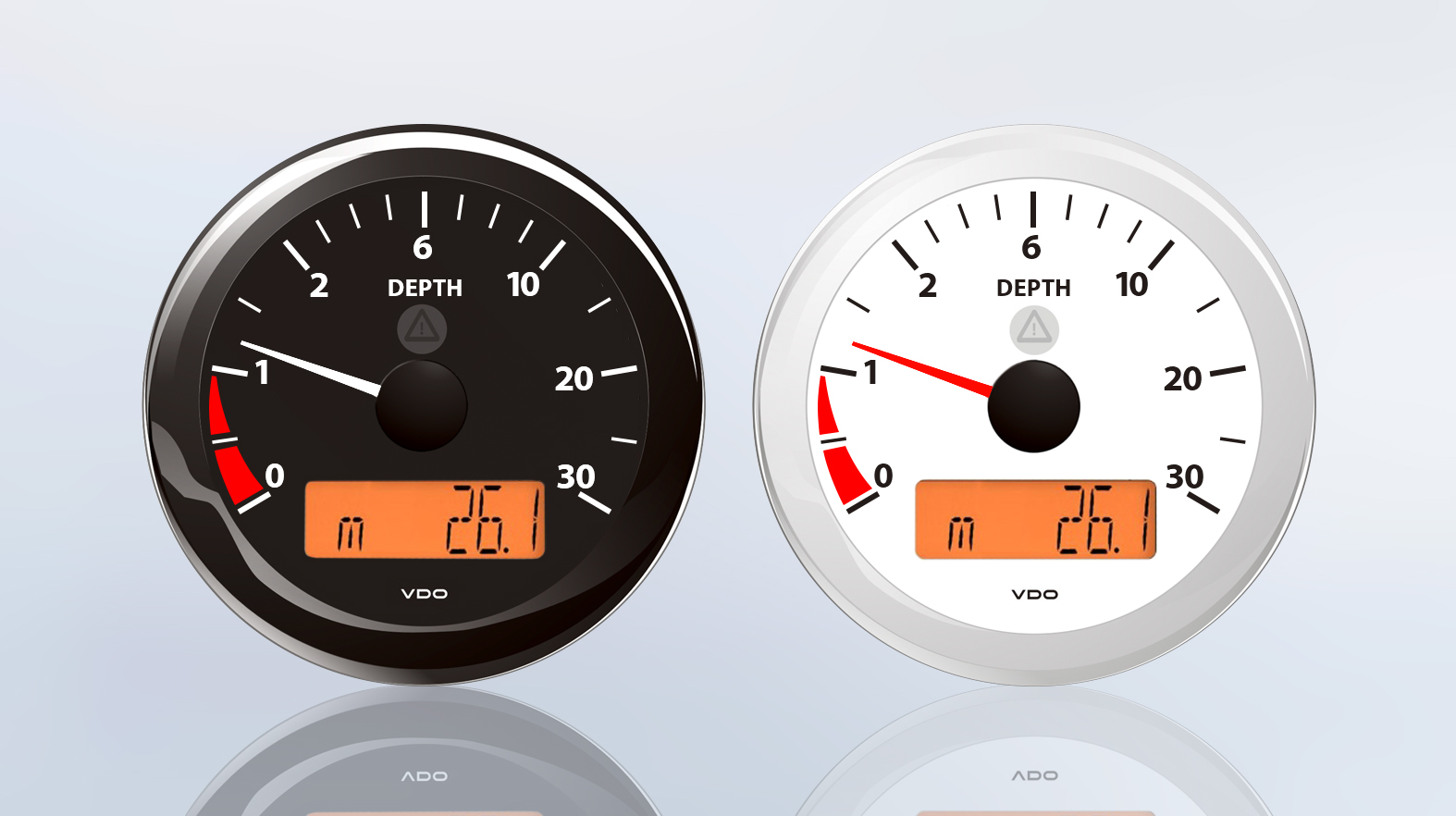

Depth gauge

The ViewLine depth indicator measures water depth. The integrated alarm, which can be configured to the user’s specification, ensures safe passage through shallow waters.

8 and 14 pole Tyco / Hirschmann bush housing
Operating voltage 8 – 32 V
Accuracy + / – 2.5 % (depending on the nature of the bottom and water quality)
Current consumption < 150 mA, with integrated warning light (LED)
Warning light for configurable shallow water alarm
NMEA input for active NMEA 0183 depth sensor
Display with various functions, e. g., water temperature, depth, shallow water alarm, time, voltage, etc.
Reverse polarity protection
Anti-fog double lens
Front side protection rating IP67
85 mm installation diameter
50mm installation depth

Range meter	Voltage	Color	Input	Article number
Ø 85 mm
0 – 30 m	8 – 32 V	Black White	NMEA 0183	A2C59514247 A2C59514250
