Level Instruments
Precise instrumentation to safely steer your boat
Precise level instruments provide reliable information about all relevant level values, e.g. the levels of fuel or fresh water tanks.

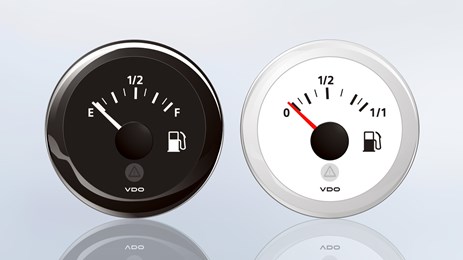

Fuel level gauge 0-90
The ViewLine fuel level gauge (Input 0-90 Ω) provides information about the fuel level in the tank and can be used with lever type tank sensors.
- 8 pole Tyco / Hirschmann MQS plug
- + / – 3.6° angle degree accuracy over the entire display range
- Operating voltage 8 – 32 V
- Current consumption < 150 mA, with integrated warning light (LED)
- Input signal: standard Ω values for lever type sensors
- 90° display angle
- Optional makepoint switch can be connected
- Reverse polarity protection
- Anti-fog double lens
- Front side protection rating IP67
- 52 mm installation diameter
- 50 mm installation depth
| Range | Voltage | Color | Input ohm | Article number |
| Ø 52 mm | ||||
| Empty – Full | 8 – 32 V | Black White |
0 – 90 W | A2C59514085 A2C59514186 |
Fuel level gauge 3-180
The ViewLine fuel level gauge (Input 3-180 Ω) provides information about the fuel level in the tank and can be used with lever type tank sensors.
- 8 pole Tyco / Hirschmann MQS plug
- + / – 3.6° angle degree accuracy over the entire display range
- Operating voltage 8 – 32 V
- Current consumption < 150 mA, with integrated warning light (LED)
- Input signal: standard Ω values for lever type sensors
- 90° display angle
- Optional makepoint switch can be connected
- Reverse polarity protection
- Anti-fog double lens
- Front side protection rating IP67
- 52 mm installation diameter
- 50 mm installation depth
| Range | Voltage | Color | Input ohm | Article number |
| Ø 52 mm | ||||
| 0 – 1/1 | 8 – 32 V | Black White |
3 – 180 W | A2C59514082 A2C59514184 |
Fuel level gauge 90-4
The ViewLine fuel level gauge (Input 90-4 Ω) provides information about the fuel level in the tank and can be used with lever type tank sensors.
- 8 pole Tyco / Hirschmann MQS plug
- + / – 3.6° angle degree accuracy over the entire display range
- Operating voltage 8 – 32 V
- Current consumption < 150 mA, with integrated warning light (LED)
- Input signal: standard Ω values for dip type sensors
- 90° display angle
- Optional makepoint switch can be connected
- Reverse polarity protection
- Anti-fog double lens
- Front side protection rating IP67
- 52 mm installation diameter
- 50 mm installation depth
| Range | Voltage | Color | Input ohm | Article number |
| Ø 52 mm | ||||
| 0 – 1/1 | 8 – 32 V | Black White |
90 – 4 W | A2C59514079 A2C59514182 |
| Empty – Full | 8 – 32 V | Black White |
90 – 4 W | A2C59514088 A2C59514188 |
Fuel level gauge 240-33.5
The ViewLine fuel level gauge (Input 240-33.5 Ω) provides information about the fuel level in the tank and can be used with lever type tank sensors.
- 8 pole Tyco / Hirschmann MQS plug
- + / – 3.6° angle degree accuracy over the entire display range
- Operating voltage 8 – 32 V
- Current consumption < 150 mA, with integrated warning light (LED)
- Input signal: standard Ω values for lever type sensors
- 90° display angle
- Optional makepoint switch can be connected
- Reverse polarity protection
- Anti-fog double lens
- Front side protection rating IP67
- 52 mm installation diameter
- 50 mm installation depth
| Range | Voltage | Color | Input ohm | Article number |
| Ø 52 mm | ||||
| Empty – Full | 8 – 32 V | Black White |
240 – 33.5 W | A2C59514094 A2C59514190 |

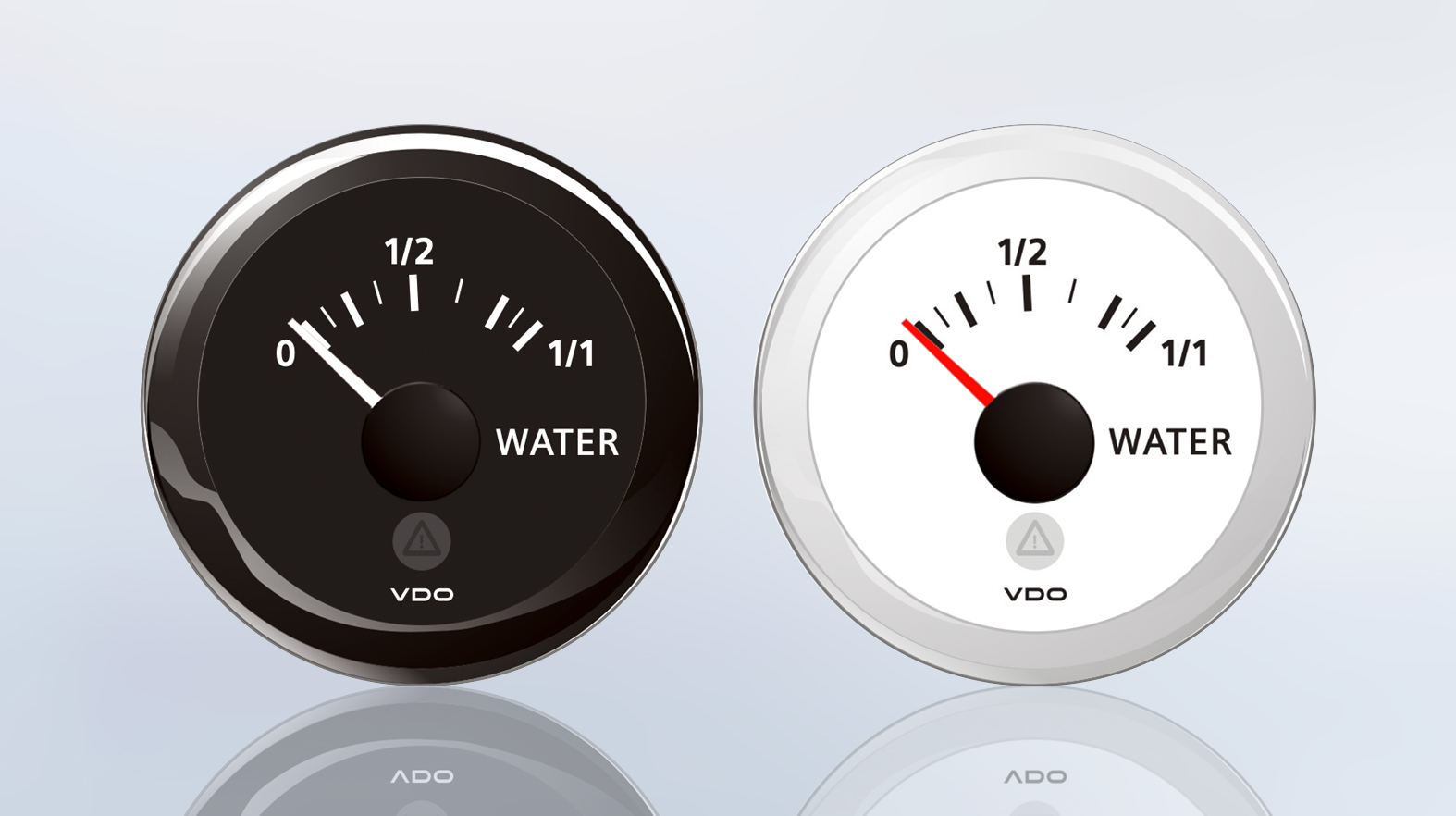

Fresh water level gauge (capacitive)
The ViewLine fresh water tank gauge indicates the level of fresh water. Capacity sensors can be fitted for a maximum depth of up to 1500 mm.
- 8 pole Tyco / Hirschmann MQS plug
- + / – 3.6° angle degree accuracy over the entire display range
- Operating voltage 8 – 32 V
- Current consumption < 150 mA, with integrated LED warning light (red)
- Input signal: 4 – 20 mA current consumption (VDO fresh water sensor)
- 90° display angle
- Reverse polarity protection
- Anti-fog double lens
- Front side protection rating IP67
- 52 mm installation diameter
- 50 mm installation depth
| Range | Voltage | Color | Input |
Article number |
| Ø 52 mm | ||||
| 0 – 1/1 | 8 – 32 V | Black White |
4 – 20 mA | A2C59514676 A2C59514677 |

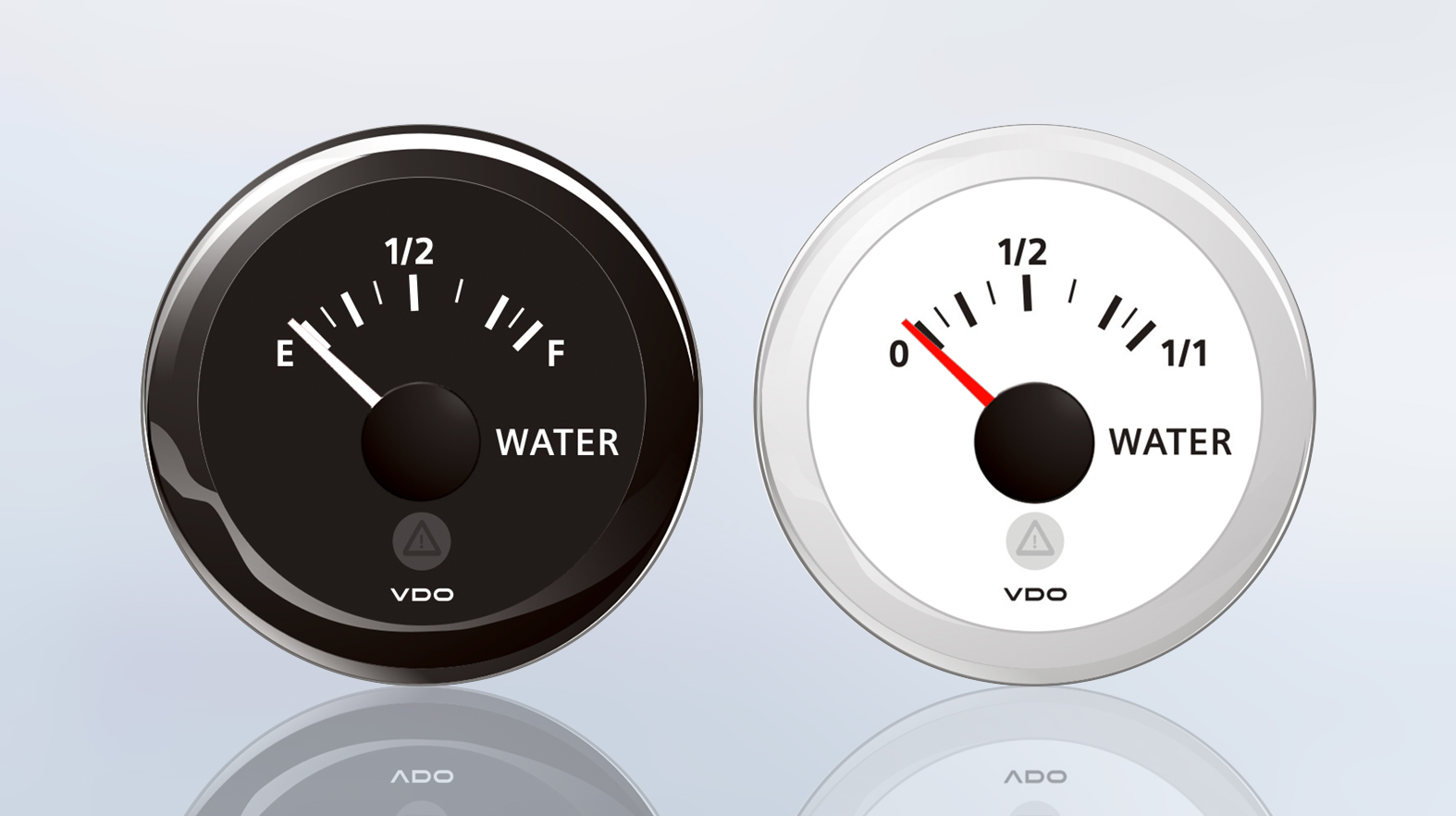

Fresh water level gauge (resistive)
The ViewLine fresh water gauge provides information about the water level in the tank and can be used with all types of tank sensors.
- 8 pole Tyco / Hirschmann MQS plug
- + / – 3.6° angle degree accuracy over the entire display range
- Operating voltage 8 – 32 V
- Current consumption < 140 mA
- Input signal: standard Ω values
- 90° display angle
- Reverse polarity protection
- Anti-fog double lens
- Front side protection rating IP67
- 52 mm installation diameter
- 50 mm installation depth
| Range | Voltage | Color | Input ohm | Article number |
| Ø 52 mm | ||||
| 0 – 1/1 | 8 – 32 V | Black White |
3 – 180 W | A2C59514097 A2C59514192 |
| Empty – Full | 8 – 32 V | Black White |
3 – 180 W | A2C59514099 A2C59514193 |

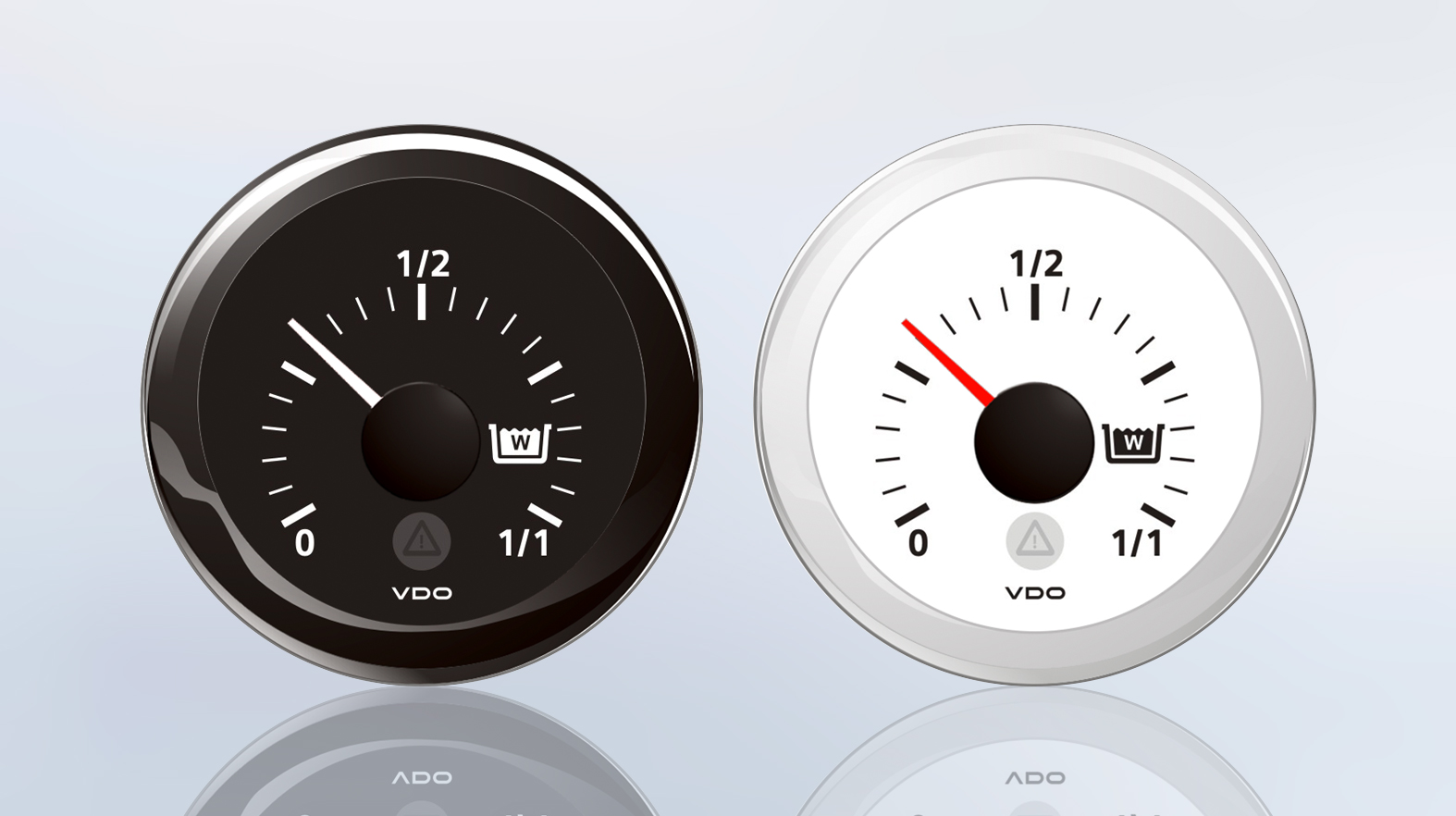

Waste water level gauge
The ViewLine blackwater tank gauge indicates the level of waste water. Capacity sensors can be fitted for a maximum depth of up to 1 500 mm.
- 8 pole Tyco / Hirschmann MQS plug
- < 2.5 % accuracy over the entire display range
- Operating voltage 8 – 32 V
- Current consumption < 100 mA, with integrated warning light (LED)
- Input signal: 4 – 20 mA current consumption (VDO waste water sensor)
- 240° display angle
- Reverse polarity protection
- Anti-fog double lens
- Front side protection rating IP6752 mm installation diameter
- 50 mm installation depth
| Range | Voltage | Color | Input |
Article number |
| Ø 52 mm | ||||
| 0 – 1/1 | 8 – 32 V | Black White |
4 – 20 mA | A2C59512342 A2C59512343 |
